Plastic Cup Curling Machine 3-Screw

Name: Plastic Cup Curling Machine 3Screw
Brand: Wenzhou Beyond Machine Co., Ltd.
Price: 1 USD

Quality Plastic Cup Curling Machine 3-Screw for sale

Model Number : Plastic Cup Curling Machine 3-Screw

Suitable Material : PVC, PS, PET, PP, PLA

Max. Dia. Of Curling : 120mm

Certification : CE Certification

Brand Name : Wenzhou Beyond Machine Co., Ltd.

Place of Origin : CHINA

Contact Now

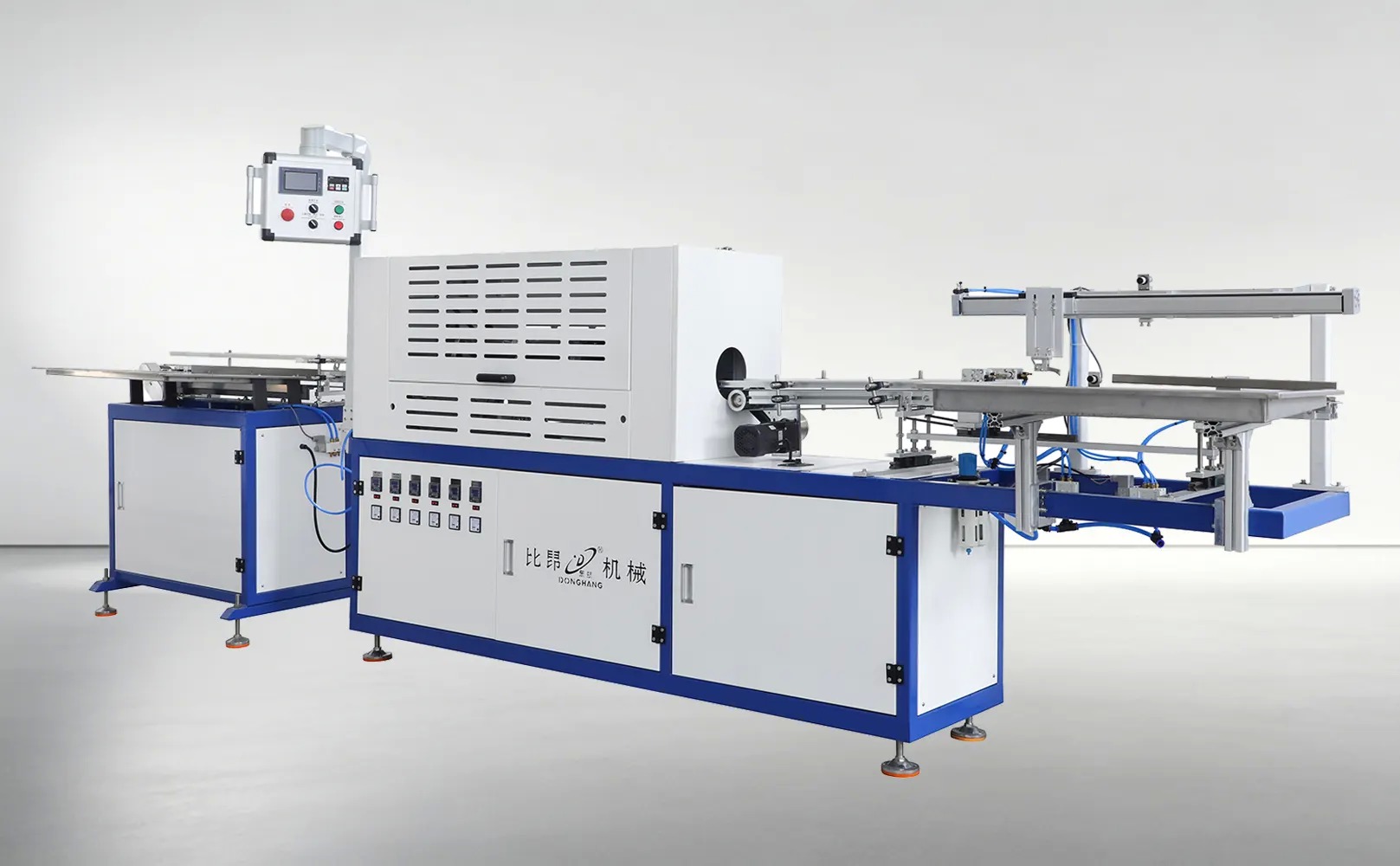

Plastic Cup Curling Machine 3-Screw

Finish plastic cup rims before lid fitting and packing with DHJBJ-120-3. The four-screw curling machine processes already formed PVC, PS, PET, PP and PLA cups up to 120 mm curling diameter. We configure the screw according to your cup sample.

Product Overview

Features:

Wide material range
Automatic feeding & stacking
Customized to your cup

Scope of Application

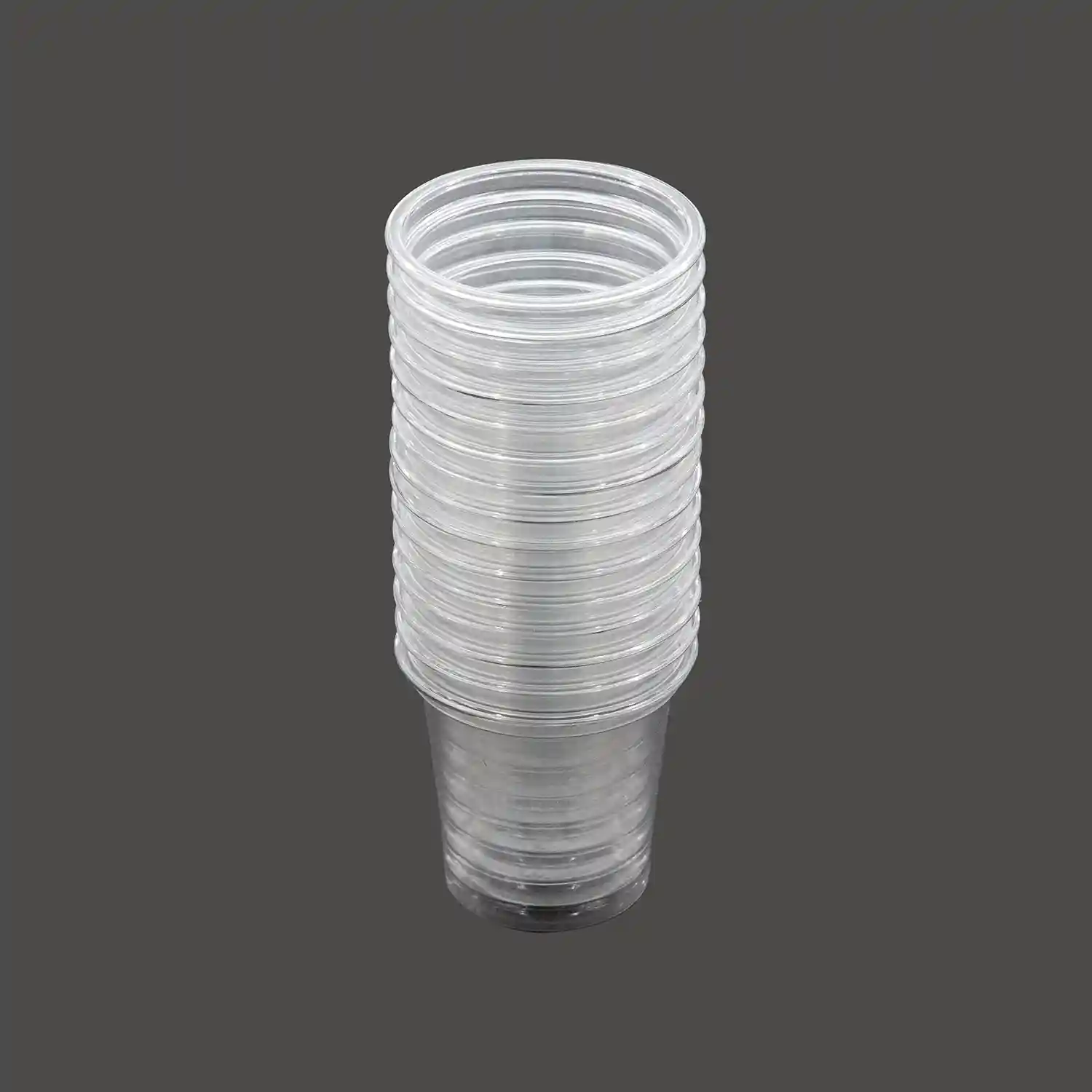

Cup Sample	PET Cup	PS Cup	PET Big Cup

Technical Specifications Of Plastic Cup Curling Machine

	DHJBJ-120-4	DHJBJ-120-3
Screw Qty	4	3
Curling Capacity	500 – 1500pcs/min	400 – 600pcs/min
Suitable Material	PVC,PS,PET,PP,PLA
Max. Dia. Of Curling	120mm
Main Motor	2.2kW
Heating Power	10kW
Air pressure	0.6MPa
Dimension(L×W×H)	5.2×1.1×1.3m
Weight	1300kg	880kg
Power Supply	380V, 3Ph, 50/60Hz

Curling Process

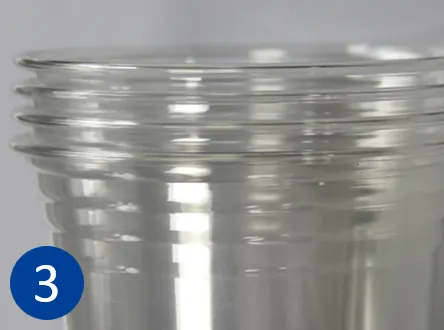

BEFORE CURLING	CURLING PROCESS	AFTER CURLING

Frequently asked questions

What does the curling machine do?

The curling machine is used to curl the plastic cup mouth, making the rim uniform and smooth, improving sealing performance, and enhancing overall product quality and user experience.

What materials can the curling machine process?

It can process already formed PVC, PS, PET, PP, and PLA cups. The final configuration depends on rim size, wall thickness, and material.

What is the maximum cup diameter the curling machine can handle?

The DHJBJ-120-3 supports a maximum curling diameter of 120 mm, suitable for common drinking cups, bubble tea cups and similar products.

Is the curling machine automatic?

Yes. It automatically completes feeding, heated curling, discharge, and stacking for a continuous handling process.
