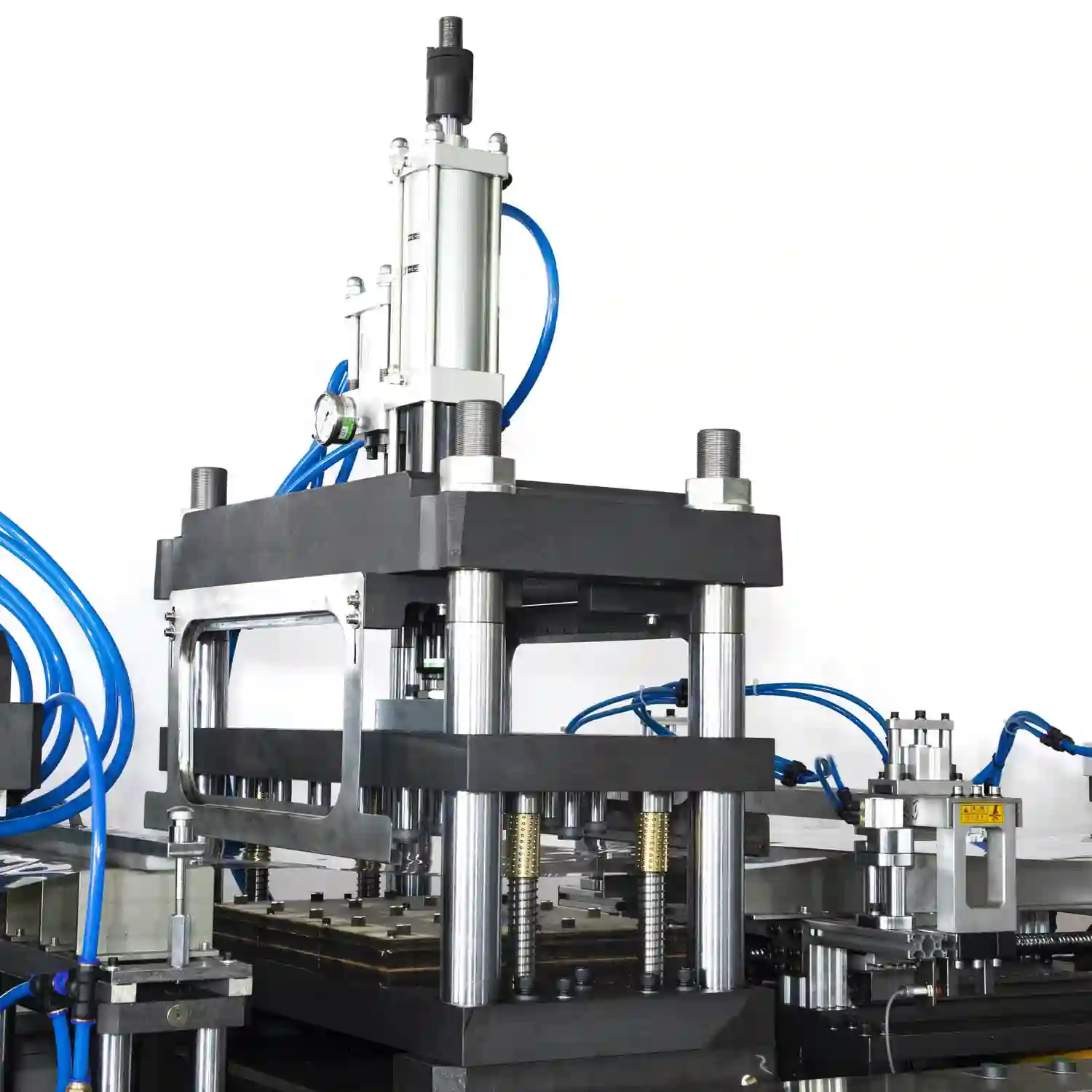

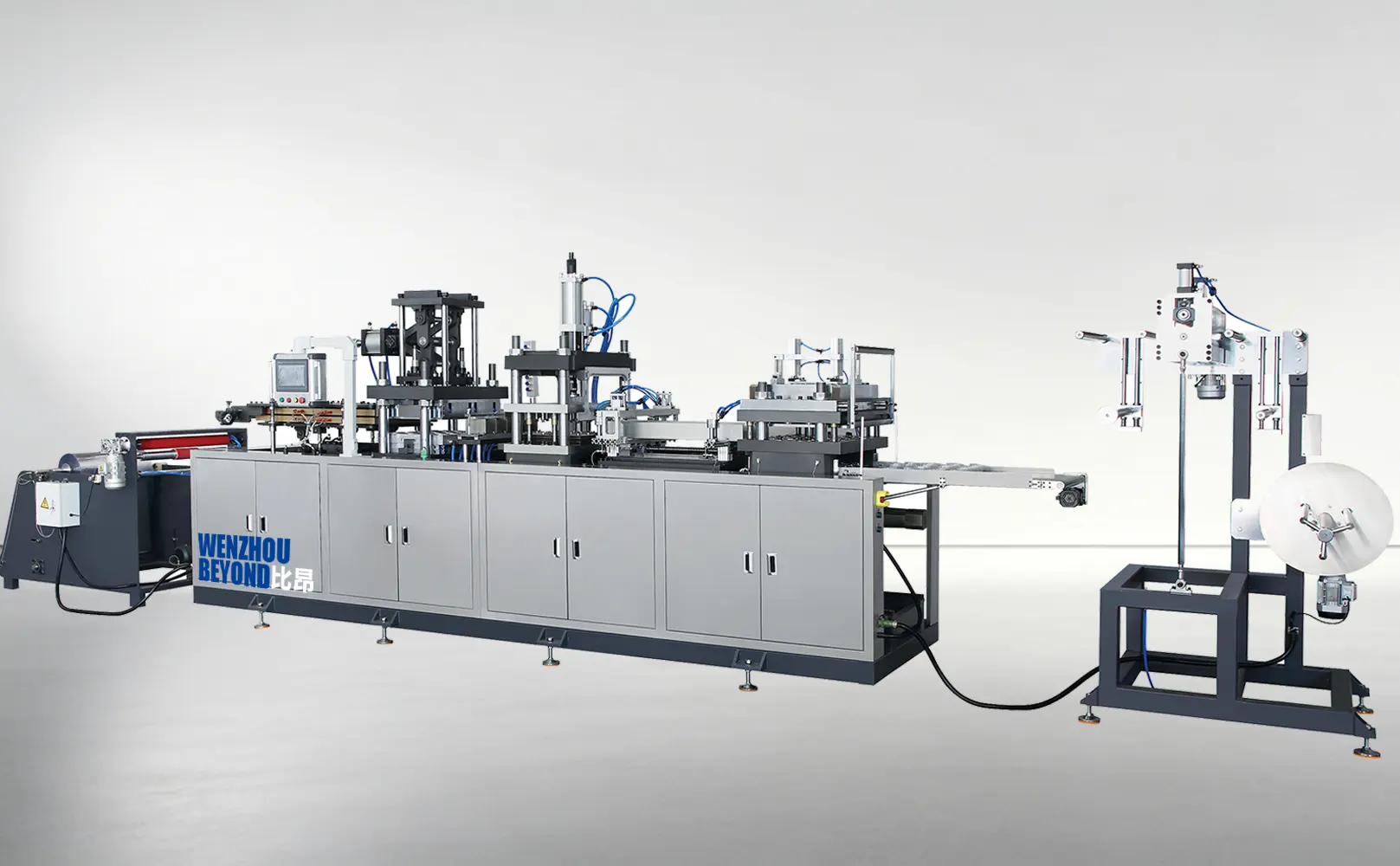

Full Servo Thermoforming Machine DH600
The DH600 thermoforming machine is designed for packaging projects that need a deeper forming envelope and a complete automatic route from sheet feeding to stacking. Start with the finished container, tray, or lid: its depth, sheet, rim, nesting, and complete mold layout determine whether this model should enter the project review. DH600 provides a 600 × 500 mm maximum forming area, 80–90 mm maximum forming depth, and a stated 20–30 cycles/min operating range. It lists PET, PS, PLA, and PVC sheet.
Define the packaging requirement
| Product family |
Details to send before mold design |
| Food containers |
Length, width and depth; number of compartments; whether the container uses a separate lid or sealing film; how the empty containers should stack. |
| Trays |
Length, width and depth; what the tray will hold; any pockets or raised sections; rim requirements. |
| Clamshells |
Dimensions when open and closed; a sample showing the hinge and closure. |

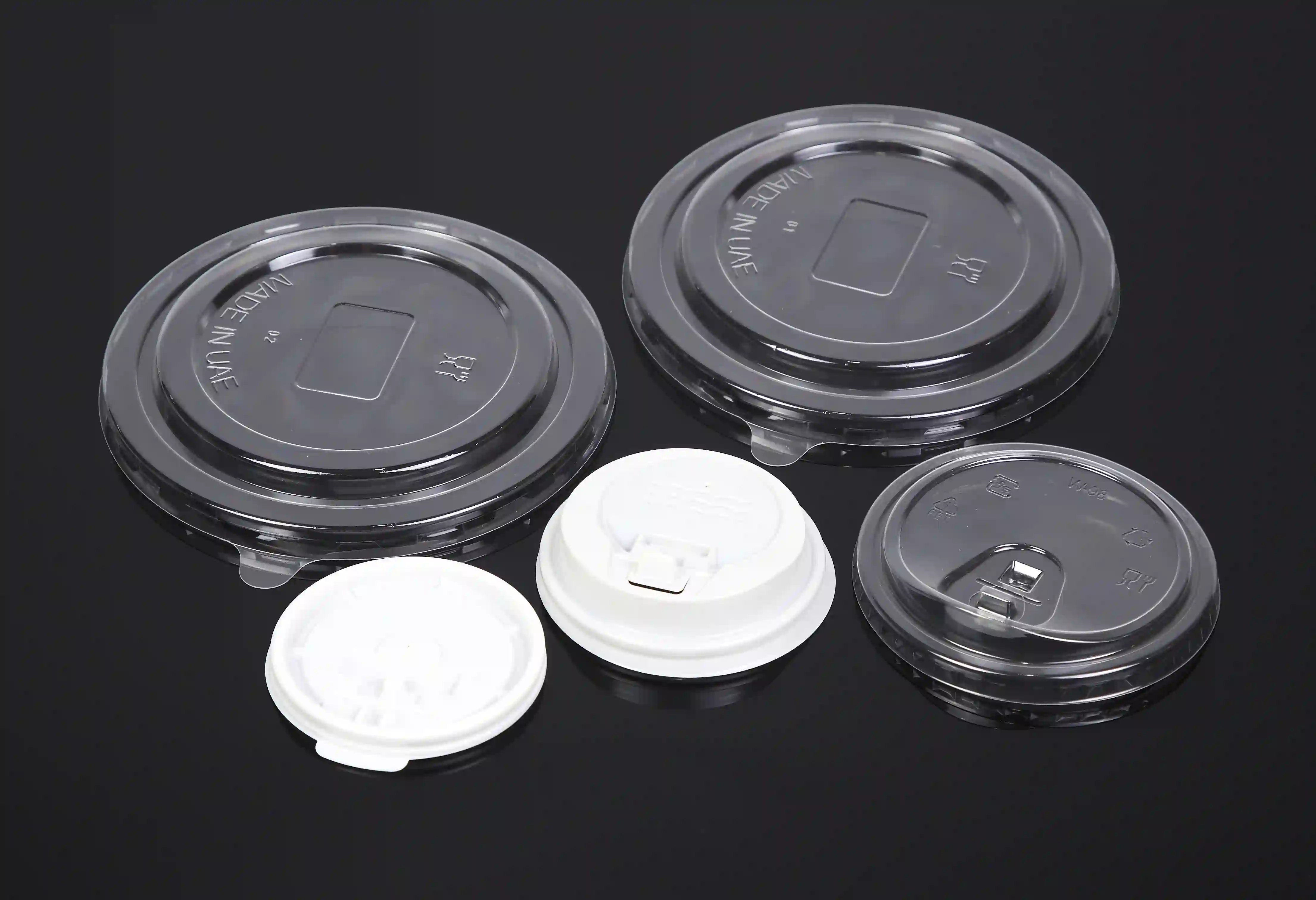

| Cup or bowl lids |
A sample of the matching cup or bowl; lid diameter and height; flat or dome shape; any drinking or vent openings. |
Send a product photo, sample or drawing, together with the sheet material, sheet thickness and required output. If you do not have a drawing, start with clear photos and basic measurements.
We first check the material, product depth and complete mold layout against the machine specifications. During a trial, use the intended sheet and check the finished shape, cut edges, lid fit or closure, and stacking. Record the running conditions and accepted output so the proposed configuration can be evaluated against your production needs.
Technical Specifications Of DH600 Thermoforming Machine
|
DH600 |
DH600-L |
|
Suitable Material
|
PET,PS,PLA,PVC
|
|
Max. Forming Area
|
600×500mm
|
| Max. Forming Depth |
80-90mm |
| Material Thickness |
0.15-0.8mm |
| Working Speed |
20-30 cycles/min |
20-28 cycles/min |
| Max. Sheet Width |
625mm |
| Max. Sheet Roll Dia. |
1200mm |
| Max. Forming Force |
300kN |
| Max. Cutting Force |
400kN |
| Heating Power |
36kW |
| Total Rated Power |
40kW |
| Average Power Consumption |
8-11 kW (speed-dependent) |
| Air Pressure |
0.6-0.8Mpa |
| Air Consumption |
>2m³/min (at maximum operating speed) |
| Cooling Water Consumption |
2m³/h |
1.5m³/h |
| Dimension(L×W×H) |
8.7×1.4×2.5m |
9.5×1.4×2.5m |
| Weight |
7000kg |
7900kg |
| Power Supply |
380V, 3Ph, 50Hz |
Thermoforming Process
 |
 |
 |
| SHEET FEEDING |
HEATING |
FORMING |
 |
 |
 |
| PUNCHING |
CUTTING & STACKING |
WINDING |
Prepare the installation review
Separate total rated power from average running consumption. The standard power supply is 380 V, 3 phase, 50 Hz. Compare the air and cooling figures above with your plant capacity, and add roll-loading, mold-handling access to the machine footprint.
Frequently asked questions
What should I send before you recommend DH600 for a food container?
Send a sample or open drawing with length, width, depth, rim and compartments; add the intended sheet thickness, target accepted output and matching lid if used.
Does an 80–90 mm forming depth mean every deep container will work?
No. Review the full geometry, wall distribution, mold cavities, sheet and cutting/stacking route.
Should I send the matching lid with a container sample?
Yes, when lid fit is part of the requirement. Send both parts and identify the rim dimensions and required closure. Check leak resistance separately if your packaging requires it.
